Dock Levelers

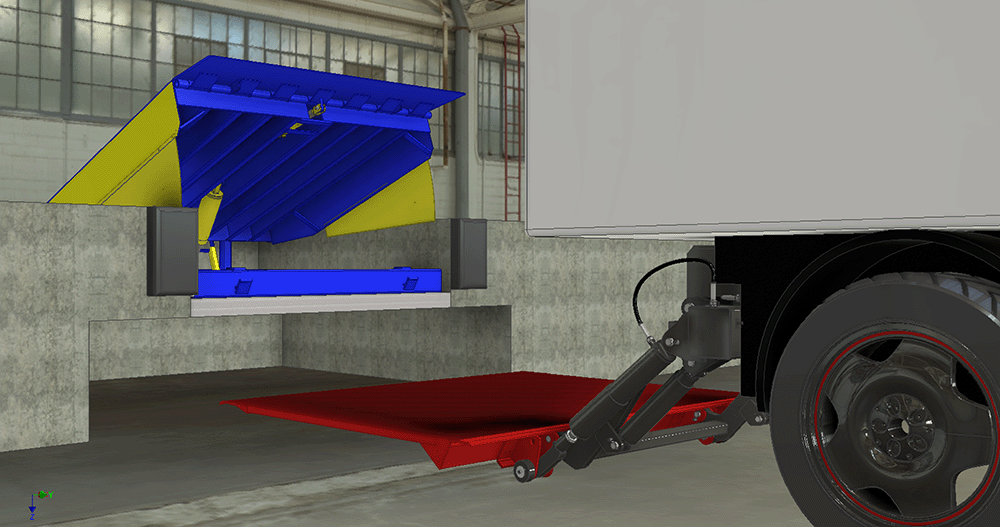

PHE Dock Leveler unique cantilever construction allows Tail Lift of the truck to rest under the platform of the dock leveler during goods loading.
PHE Dock Leveler Key Features:
Our Unique Reinforced Base Frame Design allows the truck’s Tail Lift to rest beneath the dock leveler during goods loading. Our distinctive design offers superior functionality, providing advantages over competitor models by improving safety and efficiency.
Large Size Hydraulic Cylinder. Our dock leveler is equipped with a significantly larger hydraulic cylinder compared to those used by our competitors. This robust design enhances safety and reliability, enabling the dock leveler to withstand higher loads.
Product Overview

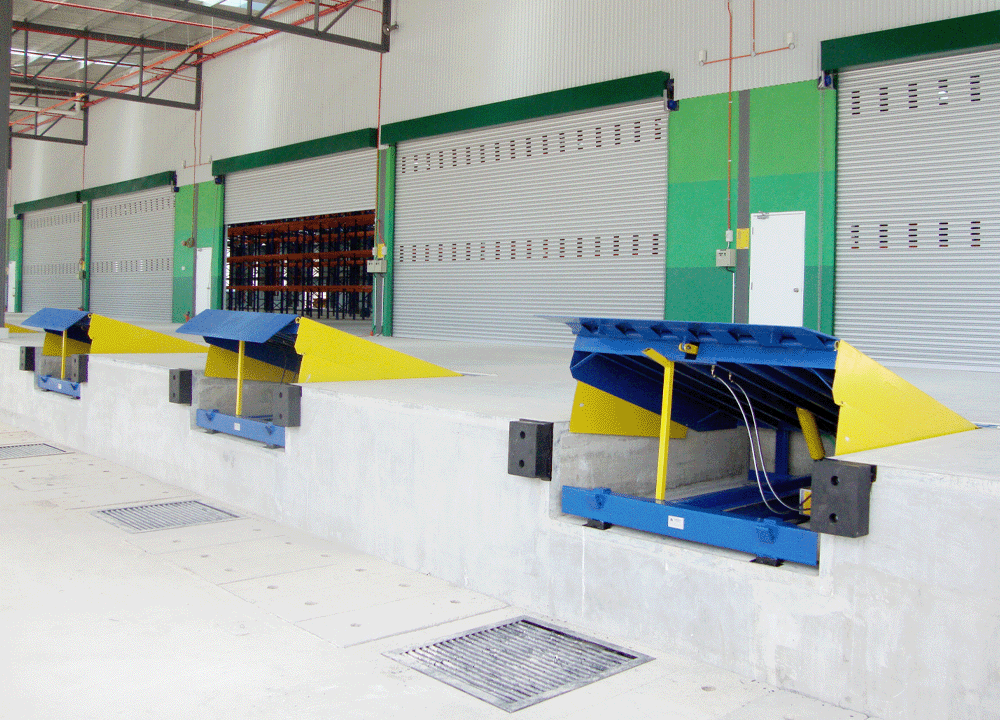

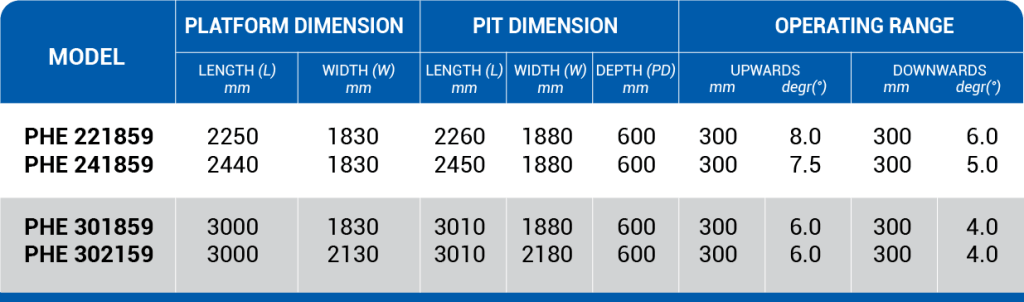

Our dock leveler is designed in a way that not only minimal maintenance is required, the installation is fast and easy. PHE Dock Leveler Standard Series are available in 4 sizes. Dock Leveler accessories and other optional are also available upon request.

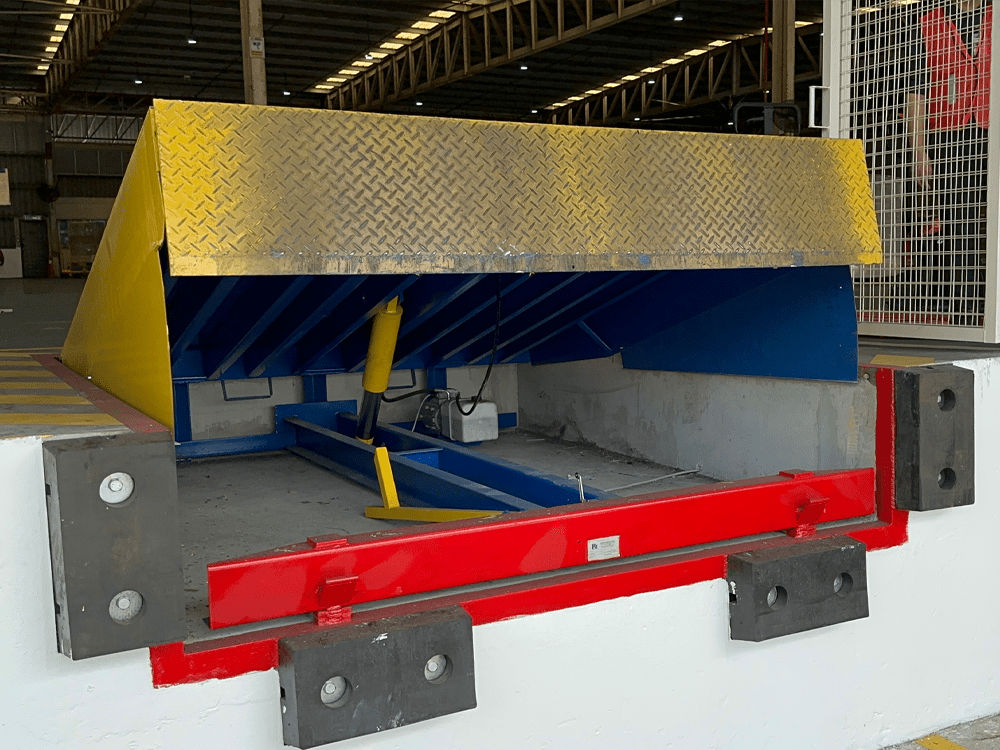

Product Highlights & Safety Features:
1. Low operating pressure (500psi) which increases reliability.
2. Heavy duty 22mm chequered front lip (12mm + 10mm reinforced plate), also act as night security barrier when in cross traffic position
3. Inverted hydraulic cylinder for enhanced performance
4. Overload protection device to protect the hydraulic pump
5. Automatic parking into cross traffic position when the truck drives off
6. Full width, self-cleaning and heavy-duty tube hinge
7. Safety stop in case of hose burst, or if truck unintentionally drive-off during loading
8. Built-in maintenance prop for maintenance works
9. Each dock leveler comes with comprehensive operation & maintenance manual and also a warning sign for safer operation
10. Safety yellow toe guards throughout full operational range of dock leveller and alerting cross traffic forklift
Special Application
Free Standing Frame Dock Leveler
If pit construction isn’t feasible, a free-standing frame dock leveler offers an excellent alternative. This design also allows the dock leveler to be installed in a sheltered area outside the building, making it especially useful for loading dock areas with limited floor space.

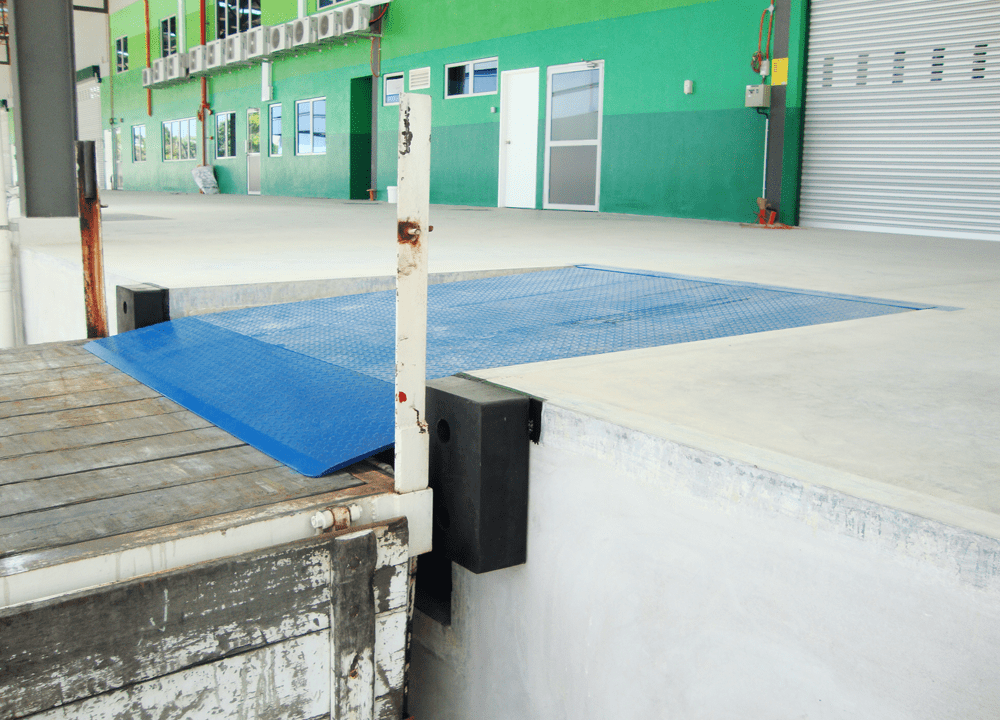

Edge of Dock
An edge-of-dock bridges the gap between the edge of a loading area and a truck. Unlike traditional dock levelers, it doesn’t require a concrete pit, as it is mounted directly onto the loading dock. However, its operational range is less versatile than that of a standard dock leveler.

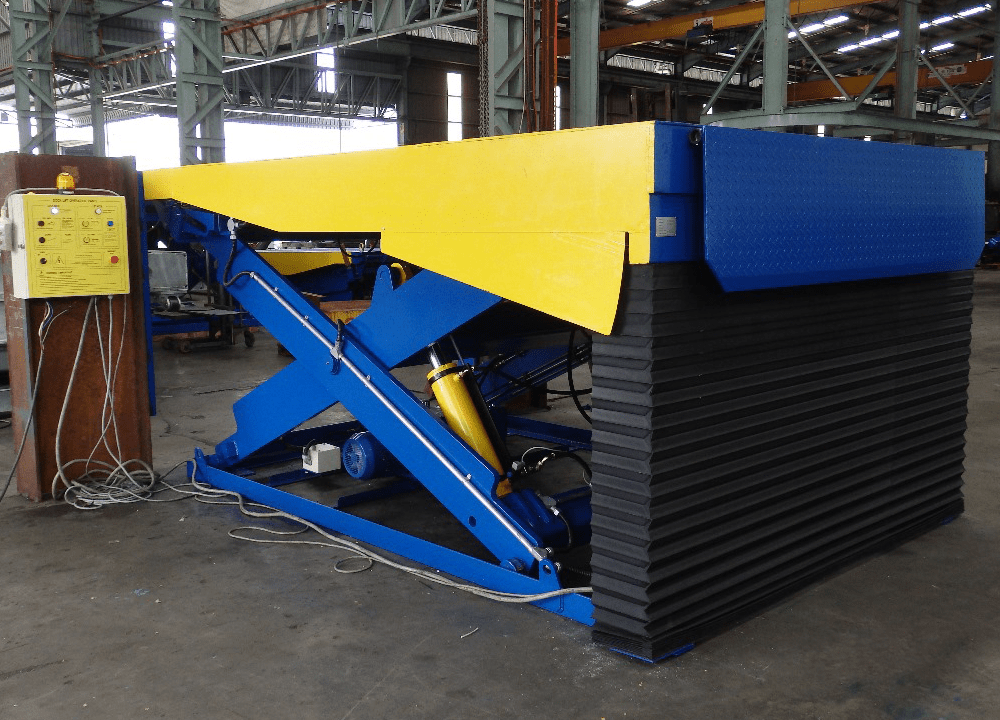

Dock Lift – The Scissor Lift + Dock Leveler Combo
This dock lift combines the functions of a Scissor Lift and Dock Leveler into single compact unit, saving valuable space by eliminating the need for a separate scissor lift and dock leveler.
In dock mode: It function as a dock leveler for efficient loading and unloading.
In lift mode: It function as a scissor lift, enabling smooth travel between dock and ground level without the need for a ramp.

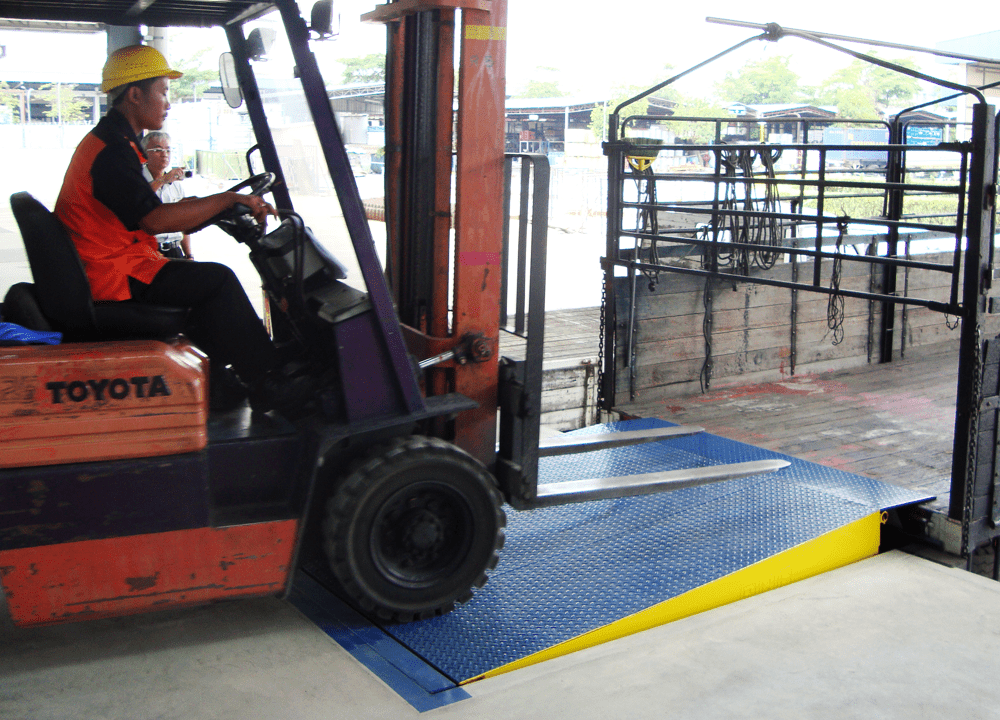

Telescopic Lip Dock Leveler
Featuring an adjustable telescopic lip, these dock levelers offer flexibility in handling various truck sizes and loading scenarios. The lip extends or retracts to accommodate different truck bed heights, loading gaps, and even cold room applications, ensuring versatility across a wide range of loading situations.

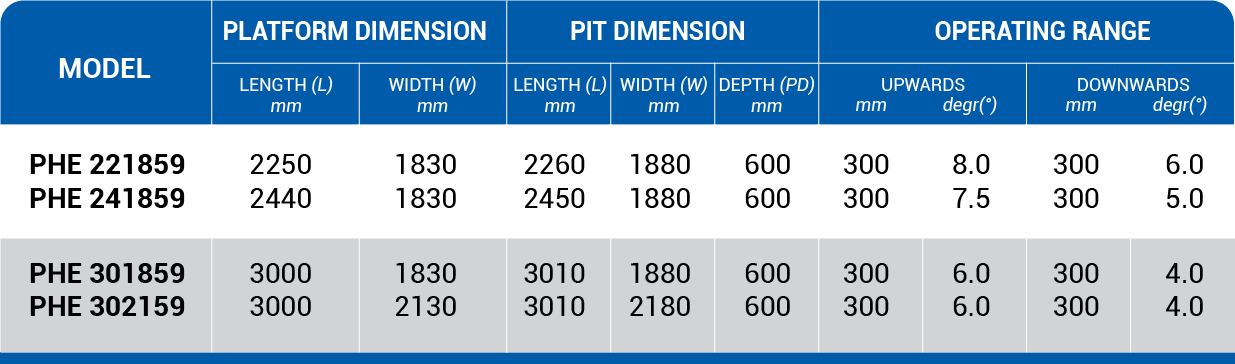

Product Specification
Rated Capacity:
-13,600kg (Standard, 6mm chequered plate platform)
-22,700kg (Upon Request, 9mm chequered plate platform)
Dynamic Factor: Min. 2.0 (Consult for more)
Lip Length: 406mm
Power Supply: 2HP/6Amp/3-Phase/415V/50Hz
Control Type: AUTO, Single Push Button
Optional (upon request)
- 9mm chequered plate platform for even more heavy duty and durable operation. Loading capacity increased to 22,7000kg
- Higher loading capacity design
- Special platform size
- Free standing frame dock leveler
- Edge of dock
Accessories:
- Dock Bumper
- Control Panel
- Traffic Lights
- Dock Seal
- Sectional Door
- Vehicle Wheel Chook
